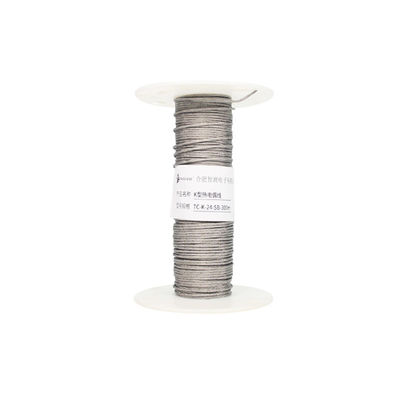

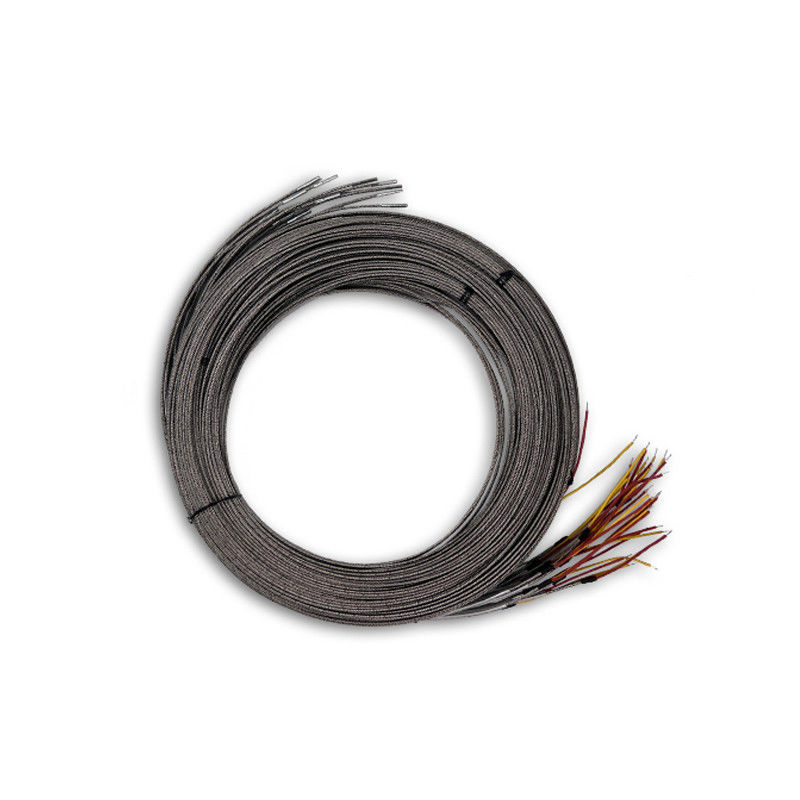

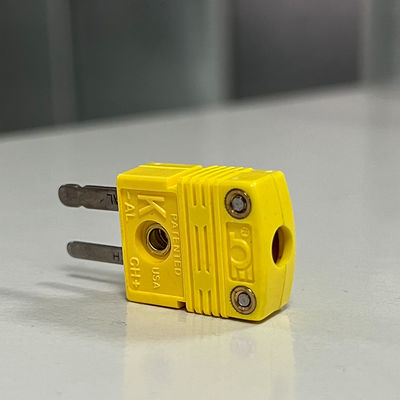

Industrial Single Core K-Type Thermocouple Probe with Stainless Steel Braiding and Plug
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | ZHICE-ELEC |
| Model Number: | TC-K-24-SB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $10.00/meters 5-9 meters |
|
Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM |
|---|---|---|---|
| Material: | / | Color: | /, Metal |
| Type: | /, K | Product Name: | Single-core Stainless Steel Braided K-type Thermocouple |
| Application: | Temperature Testing & Control | Temperature Range: | -200-482℃ |
| Calibration Certificate: | Can Provided | Lead Wire: | PTFE, Fiberglass... |
| Accuracy: | I Class | Keywords: | T-type Sensor |
| MOQ: | 1PC | ||
Product Description
Double insulated K-type thermocouple temperature measuring wire, high quality, high precision, available in stock. ZHICE-ELEC is committed to the research and development and production of high-precision temperature measurement sensors, which are widely used in aerospace, petroleum and petrochemicals, universities, laboratories, metrology institutes, new energy, automobile manufacturing, biomedical, intelligent buildings and other industries. ZHICE have compelete production line from parts assembly to sensor calibration, and we aims to provide high precision, high durability temperature products.
Model | TC-K-24-SB-300m | TC-K-24S-KAP-300m | TC-K-24-INC-1m | TC-T-24-PFA-300m | TC-T-24S-PFA-300m | TCT-30-PFA-300m | |||||||
Line type | K Type thermocouple ; Single core ; Class I accuracy ; Double insulation | K Type thermocouple ; Seven-core ; Class I accuracy ; Double insulation | K Type thermocouple ; Single core ; Class I accuracy ; Double insulation | T Type thermocouple ; Single core ; Class I accuracy ; Double insulation | T Type thermocouple ; Seven-core ; Class I accuracy ; Double insulation | T Type thermocouple ; Single core ; Class I accuracy ; Double insulation | |||||||
Specification and size | Wire diameter 2.71.7mm Thermocouple wire size 0.5mm | Wire diameter 1.8*1.mm; Thermocouple wire size 0.5mm | Wire diameter 2.4*1.4mm Thermocouple wire size 0.5mm | Wire diameter 3*1.7mm Thermocouple wire size 0.7mm | Wire diameter 1.0*0.6mm Thermocouple wire size 0.2mm | ||||||||
Color code | Positive, yellow Negative electrode, red | Positive, yellow Negative electrode, red Outer sheath, brown | Positive, yellow Negative electrode, red Outer sheath, brown | ||||||||||
Insulating layer | Outer sheath | Stainless steel braided tape | Kapton outer protective layer | Alloy braid with outer protective layer | PFA waterproof outer protective layer | ||||||||
conductor | Glass fibre | TFE | TFE | TFE | TFE | ||||||||
Maximum temperature resistance | 482°C | 400°C | 1080°C | 260°C | 260°C | 260°C | |||||||
unit | roll | roll | roll | roll | roll | roll | |||||||
Length (m) | 300 | 300 | 300 | 300 | 300 | 300 | |||||||
Accuracy | I class | ||||||||||||
