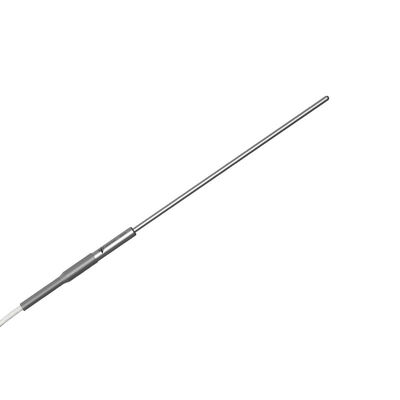

High Precision Industrial Sensor Reference Standard Fast Response 4 Wire RTD PRT Probe
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | ZHICE-ELEC |
| Model Number: | ARK22 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $48.00/meters 5-19 meters |
|
Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Material: | Stainless Steel | Color: | Silver, Metal |
| Type: | /, PRT | Product Name: | Fast Response PRT Temperature Probe |
| Application: | Temperature Testing & Control | Temperature Range: | -200-650℃ |

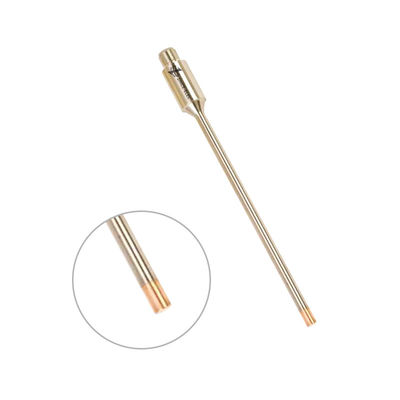

| Calibration Certificate: | Can Provided | Casing Material: | 316L Stainless Steel, Copper Alloy Tip |
| Name: | RTD Platinum Resistance Sensors | Accuracy: | 1/10B;±0.03℃,1/3B,±0.1℃,A:±0.15℃ |
| OEM: | Acceptable | ||
Product Description

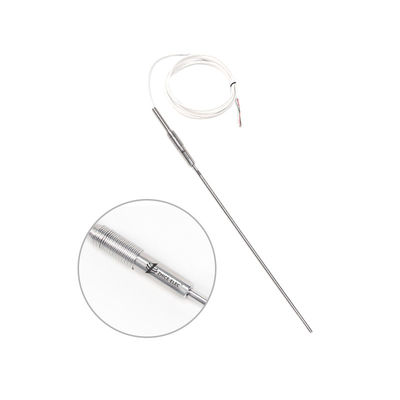

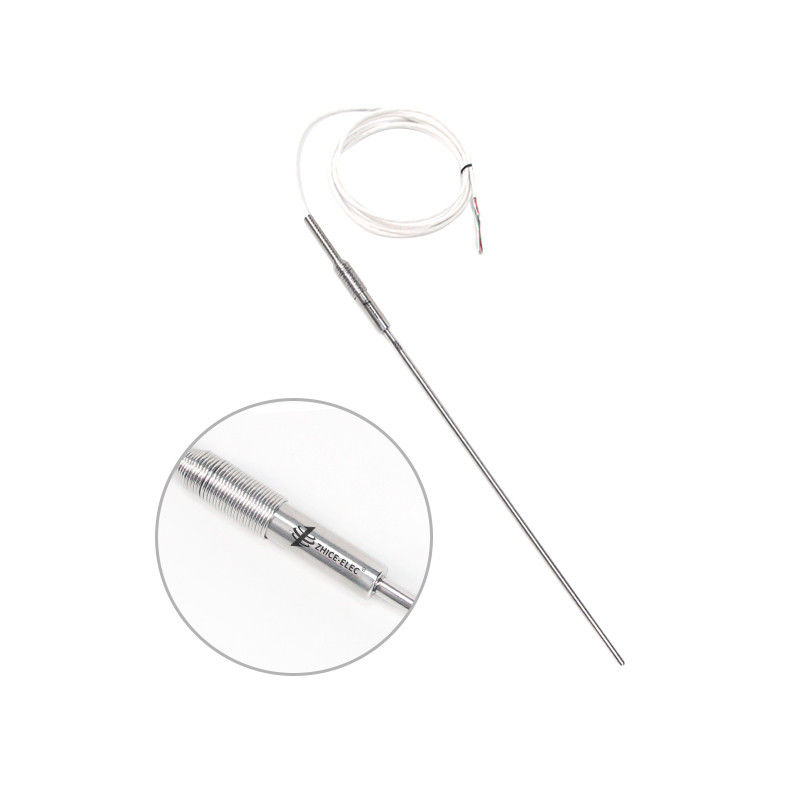

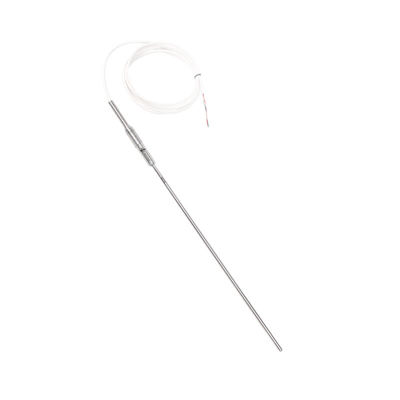

ARK22 Series High Precision PRT Probe with temperature range up to 650°C and excellent accuracy of ±0.1°C. ARK22 precision platinum resistance thermometer is shock and impact resistant, accurate and durable. ZHICE-ELEC is committed to the research and development and production of high-precision temperature measurement sensors, which are widely used in aerospace, petroleum and petrochemicals, universities, laboratories, metrology institutes, new energy, automobile manufacturing, biomedical, intelligent buildings and other industries. ZHICE have compelete production line from parts assembly to sensor calibration, and we aims to provide high precision, high durability temperature products.

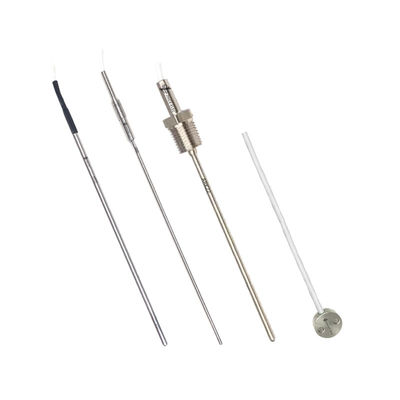

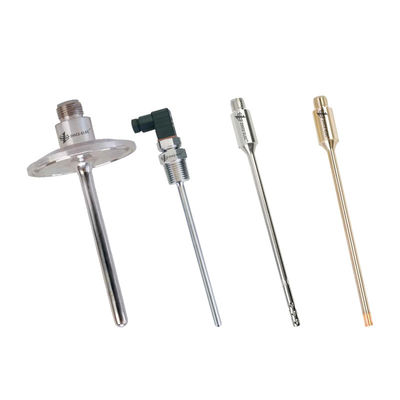

Model | ARK22 | ARK22 | AR22 | AR22 | |||
Name | Step armouring precisionplatinum resistor | Threaded mounting precision platinum resistance | Straight tube package precision platinum resistor | Surface mount precision platinum resistance | |||
Platinum resistance count | Single, double | ||||||
Cannula | Step straight pipe,Step piercing straight pipe | Threaded mounting bushing | Straight pipe,Piercing straight tube | Round pie, square pie, square tube | |||
Nominal resistance | PT100，PT1000..…… | ||||||
Accuracy | 1/10B:士0.03C，1/3B:士0.1°C，A:±0.15°C | ||||||
Range(optional) | -200-650°C | ||||||
Casing material | 316L stainless steel | Aluminum、copper | |||||
Casing size | Diameter(3/3.2/4/5/6/6.4mm)*Length (specified) mm | Round cake: 15*6mmSquare cake:15*10*6mmSquare tube: 4*4*20mm | |||||
Lead material | TFE, Stainless steel braid | ||||||
Lead length | 0.5-1、2、3、5m,or designation | ||||||
Lead wire system | 2-wire system,3-wire system, 4-wire system | ||||||
Lead shield | No masking, tape masking | ||||||
Lead terminal | Bare wire, spade, straight pin terminal, banana plug, navigation plug and other special terminals | ||||||
Special needs | Customizable | ||||||
Q: Are you a trading company or manufacture? A: We are a professional manufacture specialized in temperature humidity instrument and environment monitor system for 20 years.
Q: Who are we? A: We have a complete product line of precision temperature measurement and control such as temperature sensors, transmitters, temperature detection instruments and temperature calibration equipment.
Q: Is there any stock? A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Why to choose Hefei Zhice-elec products ? 1.Instruments has been exported to over 50 countries. 2.100% QC inspection Before Shipment. 3.ISO,CE,SGS standard and factory price. 4.Our instruments has been 100% recognized by Bureau of National Metrology. 5.Excellent product quality and strong technical support capability.
