T Type Temperature Sensor Probe 260 celsius PFA Waterproof Double Insulation for OEM
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | ZHICE-ELEC |
| Model Number: | TC-T-24-PFA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $5.00/meters 5-9 meters |
|
Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM |
|---|---|---|---|
| Material: | / | Color: | /, Metal |
| Type: | /, T | Product Name: | Single-core PFA Type T Thermocouple |
| Application: | Temperature Testing & Control | Temperature Range: | To 260℃ |
| Calibration Certificate: | Can Provided | Accuracy: | I Class |
| Keywords: | T-type Sensor | MOQ: | 1pcs |
| OEM: | Acceptable | ||
Product Description

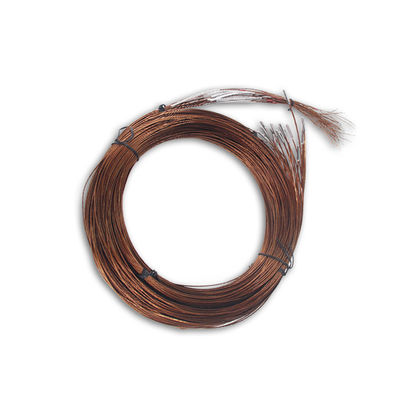

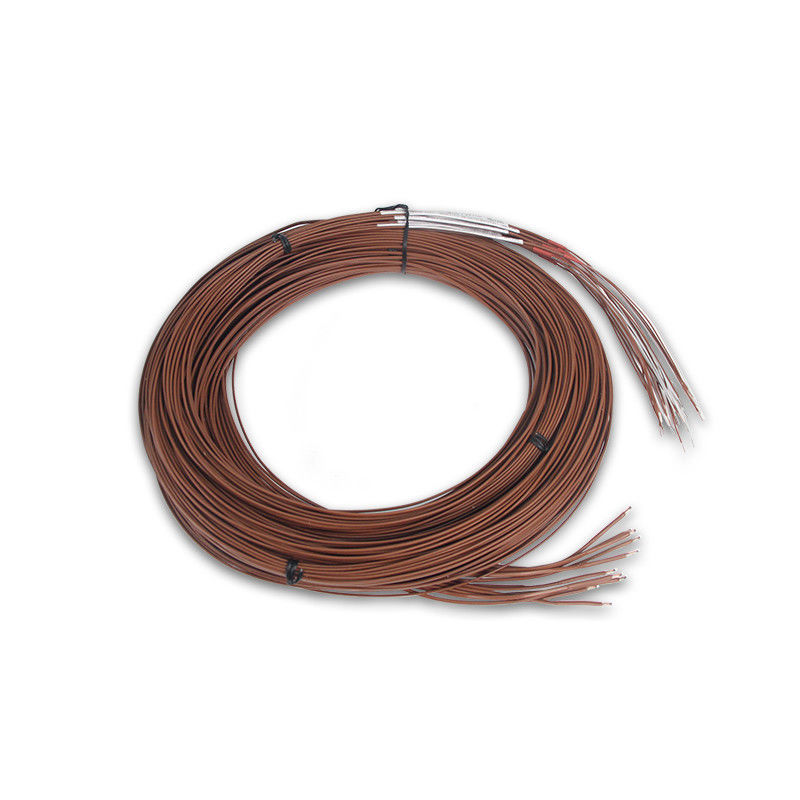

Double insulated Waterproof PFA T-type thermocouple temperature measuring wire, high quality, high precision, available in stock.
ZHICE-ELEC is committed to the research and development and production of high-precision temperature measurement sensors, which
are widely used in aerospace, petroleum and petrochemicals, universities, laboratories, metrology institutes, new energy,
automobile manufacturing, biomedical, intelligent buildings and other industries. ZHICE have compelete production line from parts
assembly to sensor calibration, and we aims to provide high precision, high durability temperature products.
ZHICE-ELEC is committed to the research and development and production of high-precision temperature measurement sensors, which
are widely used in aerospace, petroleum and petrochemicals, universities, laboratories, metrology institutes, new energy,
automobile manufacturing, biomedical, intelligent buildings and other industries. ZHICE have compelete production line from parts
assembly to sensor calibration, and we aims to provide high precision, high durability temperature products.

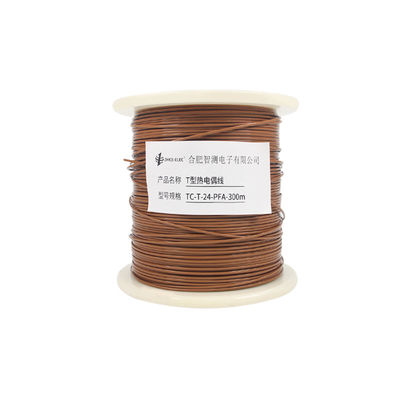

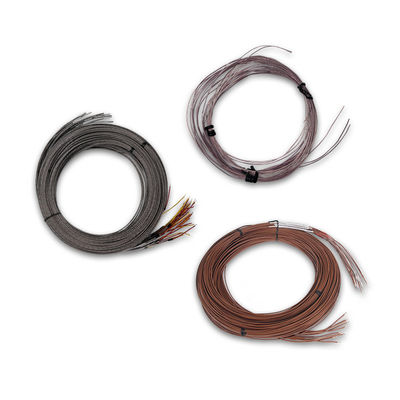

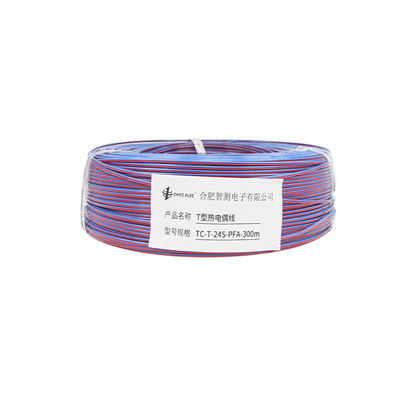

Model | TC-K-24-SB-300m | TC-K-24S-KAP-300m | TC-K-24-INC-1m | TC-T-24-PFA-300m | TC-T-24S-PFA-300m | TCT-30-PFA-300m | |||||||
Line type | K Type thermocouple ; Single core ; Class I accuracy ; Double insulation | K Type thermocouple ; Seven-core ; Class I accuracy ; Double insulation | K Type thermocouple ; Single core ; Class I accuracy ; Double insulation | T Type thermocouple ; Single core ; Class I accuracy ; Double insulation | T Type thermocouple ; Seven-core ; Class I accuracy ; Double insulation | T Type thermocouple ; Single core ; Class I accuracy ; Double insulation | |||||||
Specification and size | Wire diameter 2.71.7mm Thermocouple wire size 0.5mm | Wire diameter 1.8*1.mm; Thermocouple wire size 0.5mm | Wire diameter 2.4*1.4mm Thermocouple wire size 0.5mm | Wire diameter 3*1.7mm Thermocouple wire size 0.7mm | Wire diameter 1.0*0.6mm Thermocouple wire size 0.2mm | ||||||||
Color code | Positive, yellow Negative electrode, red | Positive, yellow Negative electrode, red Outer sheath, brown | Positive, yellow Negative electrode, red Outer sheath, brown | ||||||||||
Insulating layer | Outer sheath | Stainless steel braided tape | Kapton outer protective layer | Alloy braid with outer protective layer | PFA waterproof outer protective layer | ||||||||
conductor | Glass fibre | TFE | TFE | TFE | TFE | ||||||||
Maximum temperature resistance | 482°C | 400°C | 1080°C | 260°C | 260°C | 260°C | |||||||
unit | roll | roll | roll | roll | roll | roll | |||||||
Length (m) | 300 | 300 | 300 | 300 | 300 | 300 | |||||||
Accuracy | I class | ||||||||||||
Q: Are you a trading company or manufacture? A: We are a professional manufacture specialized in temperature humidity instrument and environment monitor system for 20 years.
Q: Who are we? A: We have a complete product line of precision temperature measurement and control such as temperature sensors, transmitters, temperature detection instruments and temperature calibration equipment.
Q: Is there any stock? A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Why to choose Hefei Zhice-elec products ? 1.Instruments has been exported to over 50 countries. 2.100% QC inspection Before Shipment. 3.ISO,CE,SGS standard and factory price. 4.Our instruments has been 100% recognized by Bureau of National Metrology. 5.Excellent product quality and strong technical support capability.
