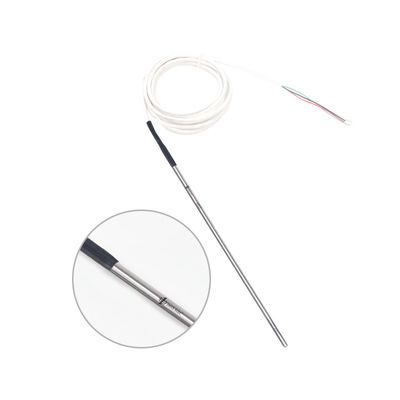

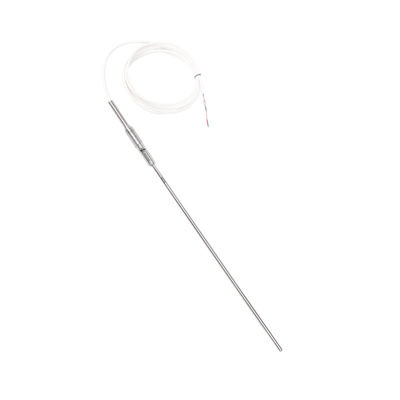

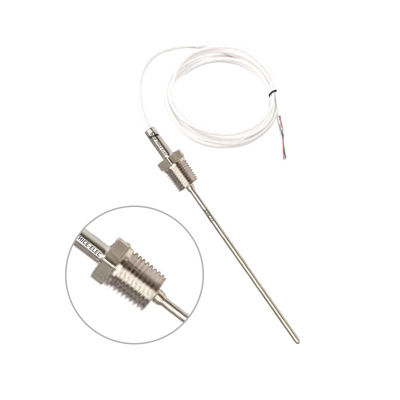

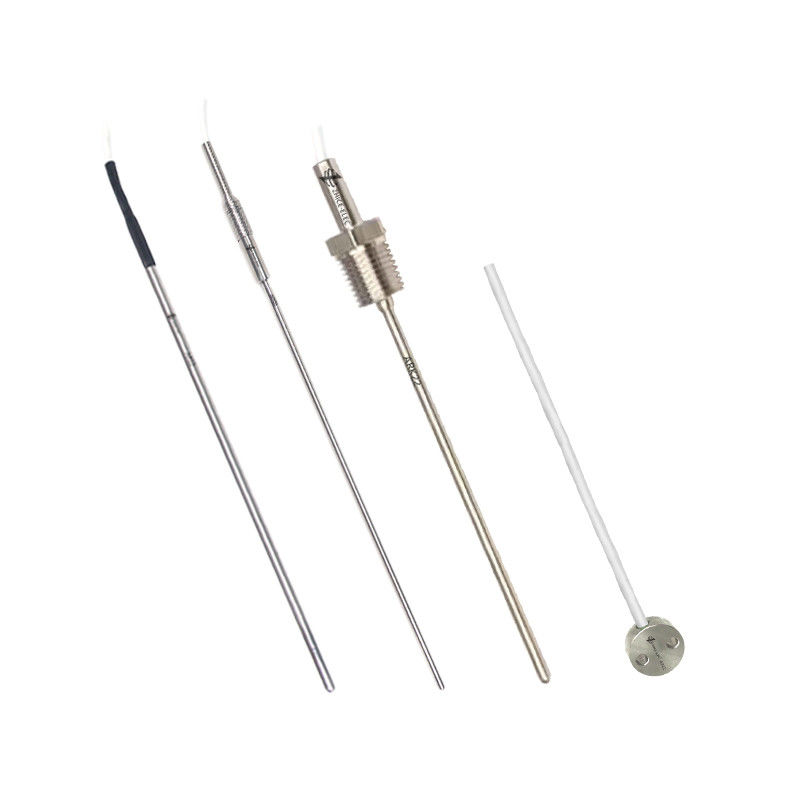

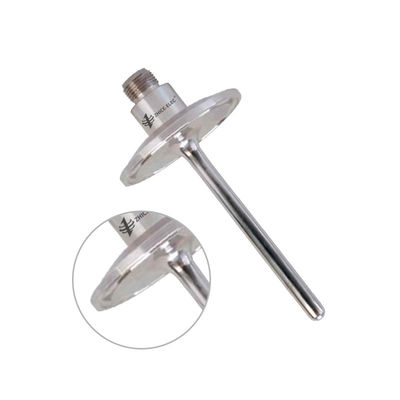

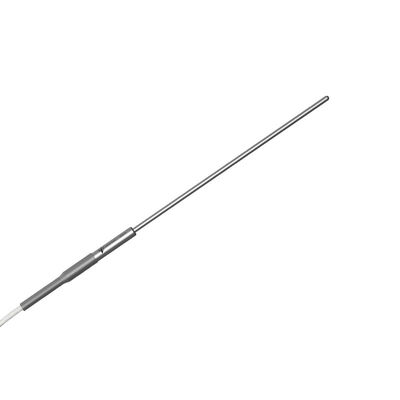

Industrial Temperature Sensor PT1000 PT100 RTD Resistance PRT Probe with High Precision
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | ZHICE-ELEC |
| Model Number: | PR5627A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $1,210.00/meters 5-9 meters |
|
Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Material: | / | Color: | /, Metal |
| Type: | /, RTD | Product Name: | Precision PRT Probe |
| Application: | Temperature Testing & Control | Temperature Range: | -100-400℃ (Optional) |
| Calibration Certificate: | Can Provided | Casing Material: | 316L Stainless Steel |
| Name: | RTD Platinum Resistance Sensors | Accuracy: | 1/10B;±0.03℃,1/3B,±0.1℃,A:±0.15℃ |
| OEM: | Acceptable | ||
Product Description
PR5627A precision platinum resistance thermometer with temperature range up to 400°C and excellent accuracy of ±0.05°C. PR5627A precision platinum resistance thermometer is shock and impact resistant, accurate and durable. ZHICE-ELEC is committed to the research and development and production of high-precision temperature measurement sensors, which are widely used in aerospace, petroleum and petrochemicals, universities, laboratories, metrology institutes, new energy, automobile manufacturing, biomedical, intelligent buildings and other industries. ZHICE have compelete production line from parts assembly to sensor calibration, and we aims to provide high precision, high durability temperature products.
Product Name | precision platinum resistance thermometer |
Model | PR5627A |
Sleeve type | Stepped Straight Tube |
Temperature range | -100-400 optional |
Nominal Resistance | 100Q±1Ω |
Accuracy | ±0.05℃ |
Characteristic Parameters | ITS90 |
Sleeve Material | 316L stainless steel |
Sleeve Diameters | 3.2mm/5mm/6.4mm* 230mm/285mm/400mm (Customization Available） |
Lead Material | PFA |
Lead Length | 0.5-1, 2,3,5m or customize |
Lead Configuration | 4 wire |
Lead Shielding | With Shielding |
Lead Terminals | Bare Wire, Spade, Straight Pin, Banana Plug, Aviation Plug, etc. Special Terminals |
Special Requirements | Customization Available |
Q: Are you a trading company or manufacture? A: We are a professional manufacture specialized in temperature humidity instrument and environment monitor system for 20 years.
Q: Who are we? A: We have a complete product line of precision temperature measurement and control such as temperature sensors, transmitters, temperature detection instruments and temperature calibration equipment.
Q: Is there any stock? A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Why to choose Hefei Zhice-elec products ? 1.Instruments has been exported to over 50 countries. 2.100% QC inspection Before Shipment. 3.ISO,CE,SGS standard and factory price. 4.Our instruments has been 100% recognized by Bureau of National Metrology. 5.Excellent product quality and strong technical support capability.
