Precision Multichannel Temperature Humidity Data Acquisition Unit with Compact Design
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | ZHICE-ELEC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $857.00/units 5-9 units |
|
Detail Information |
|||
| Warranty: | 12 Months | Customized Support: | OEM |
|---|---|---|---|
| Material: | / | Color: | / |
| Power: | / | Product Name: | Multi-channel Temperature Humidity Data Acquisition Unit |
| Model: | 1611A-HT | Application: | Multi-channel Temperature And Humidity Testing |
| Temperature Sensor: | PT100 | Humidity Sensor: | HT85-S/HC2A-S |
| Sensor Amount: | 15 Temperature And 4 Humidity | Accuracy: | HT85-S: ≤±2.0%RH(0-90%RH@25℃) |
| Resolution: | 0.01℃ | Keyword: | Ambient Temperature And Humidity Calibration System |
| Size: | 194.5*148.6*53mm | ||
Product Description

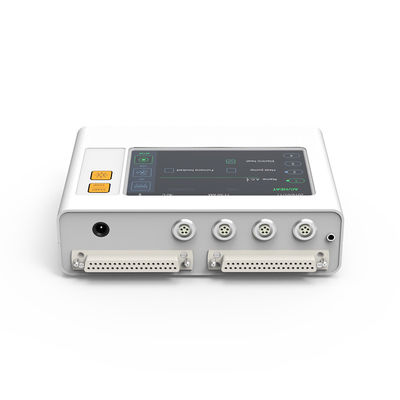

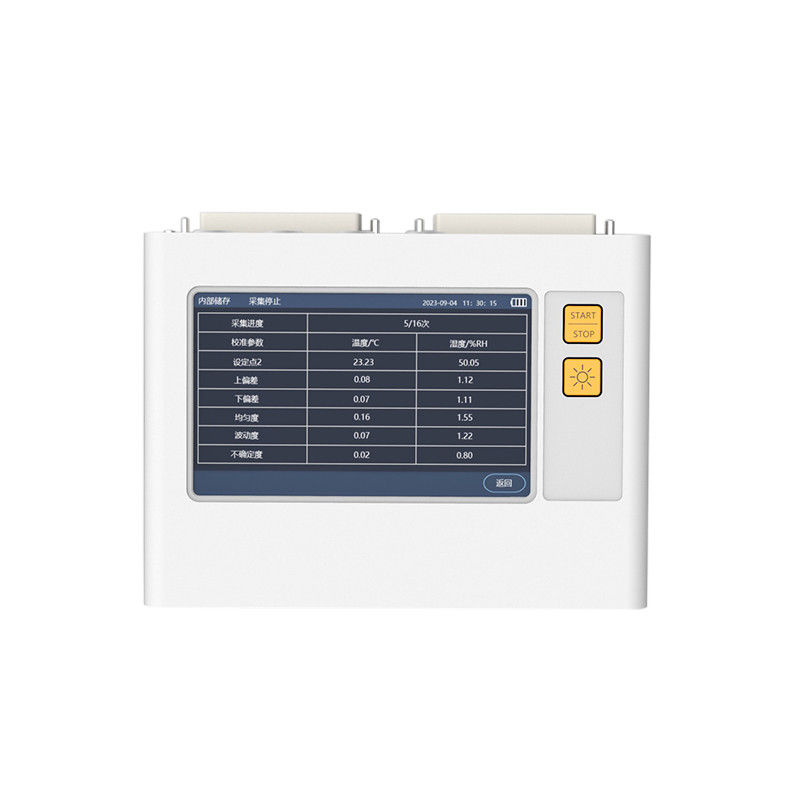

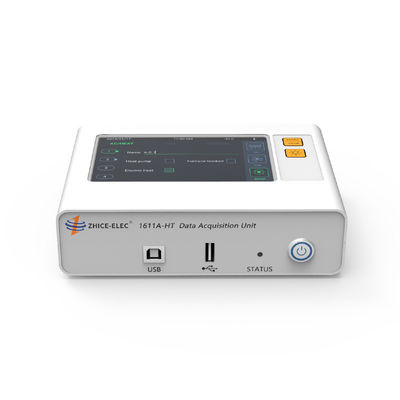

1611A-HT multi-channel temperature and humidity detector, 15-channel resistance measurement, 4-channel humidity measurement, battery powered, real-time temperature and humidity display. The 5-inches LCD touch screen display and large memory can store data so that it can be work independently without the computer and realize the data collection and real-time display of on-site temperature and humidity data. Satisfy customers' requirements for measurement accuracy, ease of use and portability at the same time.
1611A-HT multi-channel temperature and humidity acquisition unit is widely used for temperature deviation, temperature uniformity and temperature fluctuation testing of environmental testing equipment such as constant temperature and humidity chambers, drying chambers, incubators, climate aging chambers,mold test chamber, salt spray test chamber, corrosive gas test chamber, high and low temperature test chamber, alternating heat and humidity test chamber, etc.
Temperature | Humidity | ||||
Sensor Type | PT100 | HT85-S | HC2A-S | ||
Range | -80-300℃ | 0-100%RH | 0-100%RH | ||
Accuracy | ±(0.15℃+0.002|t|) | ±2.0%RH | ±0.8%RH | ||
Resolution | 0.01℃ | O.O1%RH | |||
Number of sensors | 15 | 4 | |||
Wiring | DB37 (2 sets, 9+6) | aviation plug （4） | |||
Sampling Speed | ≥1s | ||||
Storage | Inner memory or USB disk | ||||
Communication | USB | ||||
Size | 163*120*43mm | ||||
Display | 5 inches touch screen, 64*108mm | ||||
Power | Built-in rechargeable lithium battery, capacity approximately 10,000 mAH | ||||
Battery life | ≥20H | ||||
Q: Are you a trading company or manufacture?
A: We are a professional manufacture specialized in temperature humidity instrument
and environment monitor system for 20 years.
and environment monitor system for 20 years.
Q: Who are we?
A: We have a complete product line of precision temperature measurement and control such as temperature sensors,
transmitters, temperature detection instruments and temperature calibration equipment.
Q: Is there any stock?
transmitters, temperature detection instruments and temperature calibration equipment.
Q: Is there any stock?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Why to choose Hefei Zhice-elec products ?
Q:Why to choose Hefei Zhice-elec products ?
A:1.Instruments has been exported to over 50 countries.
2.100% QC inspection Before Shipment.
3.ISO,CE,SGS standard and factory price.
4.Our instruments has been 100% recognized by Bureau of National Metrology.
5.Excellent product quality and strong technical support capability.
5.Excellent product quality and strong technical support capability.
Want to Know more details about this product
