Digital Display 24 Channel Temperature Scanner for Fast and Accurate Data Acquisition
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | ZHICE-ELEC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $2,210.00/units 5-19 units |
| Packaging Details: | Bubble wrape & Carton Packing |
| Supply Ability: | 15 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 24 Months | Customized Support: | OEM |
|---|---|---|---|
| Product Name: | Multi Function Data Acquisition Unit | Model: | 1612A |
| Application: | Multi-channel Temperature Data Scanning Recording | Scanning Speed: | 25ms |
| Channels: | 24 | Communication: | RS485, LAN, USB |
| Keyword: | Easy Fast Accuracy | Power Supply: | DC12.6V/4500mAh |
| Size: | 202*141*81mm | Connect: | LAN,USB,RS485,Bluetooth |
Product Description

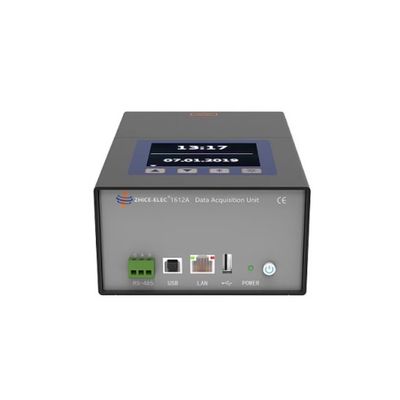

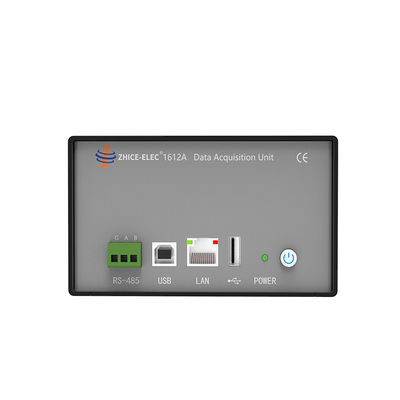

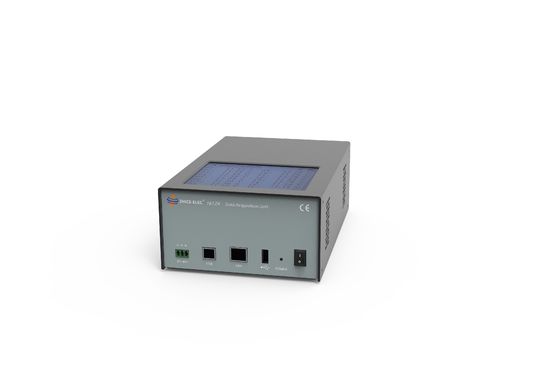

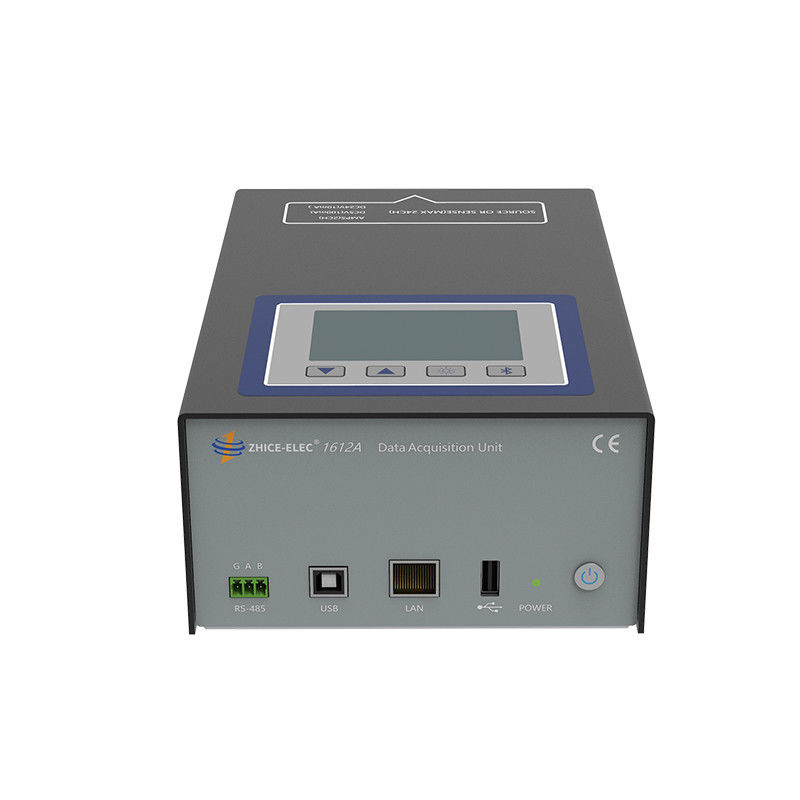

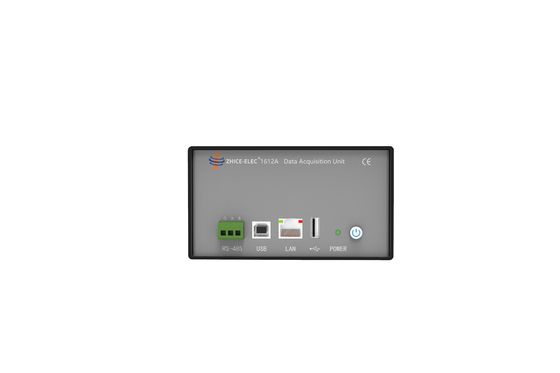

1612A Data Logger, compact and lightweight, easy to carry, high-speed data acquisition at 25ms, with 24 universal differential isolated analog input channels. RS485 connectivity allows for multi-unit cascade expansion. Additionally, its versatile and universal terminal blocks can connect to various types of signal cables, providing quick and simple connections and disconnections. Each input channel can measure direct current voltage, resistance, thermocouples, resistance thermometers signals.
The DAQ-161XA data acquisition software, a Windows-based application, enables you to easily collect and analyze measurement results on your PC. You can set up tests, acquire measurement data, archive results, and perform real-time displays, trend plotting, and channel over-limit alarms, among other features. Measurement data can be further analyzed and statistical data charts, including maximum, minimum, and average values, can be generated.
The 1612A multi-channel data logger finds wide application in environmental test equipment, temperature and humidity monitoring in high and low-temperature test chambers, temperature monitoring in refrigerators and freezers, voltage and temperature measurements of batteries or battery packs, temperature measurements in sterilization devices, temperature measurement and control in intelligent equipment, medical instruments, scientific instruments, as well as temperature monitoring in automotive electronics, headlights, LED devices, and engine temperature monitoring, and more.
The DAQ-161XA data acquisition software, a Windows-based application, enables you to easily collect and analyze measurement results on your PC. You can set up tests, acquire measurement data, archive results, and perform real-time displays, trend plotting, and channel over-limit alarms, among other features. Measurement data can be further analyzed and statistical data charts, including maximum, minimum, and average values, can be generated.
The 1612A multi-channel data logger finds wide application in environmental test equipment, temperature and humidity monitoring in high and low-temperature test chambers, temperature monitoring in refrigerators and freezers, voltage and temperature measurements of batteries or battery packs, temperature measurements in sterilization devices, temperature measurement and control in intelligent equipment, medical instruments, scientific instruments, as well as temperature monitoring in automotive electronics, headlights, LED devices, and engine temperature monitoring, and more.
DC voltage measurement：±(readouts%+range%)
Range | Accuracy | Resolution | Input resistance |
100mV | 0.005+0.006 | 0.1μV | 10GΩ |
1V | 0.0035+0.0006 | 1μV | 10GΩ |
10V | 0.005+0.006 | 10μV | 10MΩ |
100V | 0.005+0.0006 | 0.1mV | 10MΩ |
DC current measurement：±(readouts%+range%)
Range | Accuracy | Resolution | Resolution |
100μA | 0.050+0.02 | 1nA | 500Ω |
1mA | 0.050+0.02 | 10nA | 500Ω |
10mA | 0.050+0.02 | 100nA | 5.1Ω |
100mA | 0.050+0.005 | 1μA | 5.1Ω |
1A | 0.080+0.010 | 10μA | 0.1Ω |
Resistance measurement:
Range | Accuracy | Resolution | Excitation current |
100Ω | 0.0060+0.0060 | 0.1mΩ | 1mA |
1KΩ | 0.0040+0.0007 | 1mΩ | 1mA |
10KΩ | 0.0060+0.0007 | 10mΩ | 100μA |
100KΩ | 0.0070+0.0007 | 100mΩ | 10μA |
1MΩ | 0.0150+0.0007 | 1Ω | 2μA |
RTD and thermistor measurement (4 wire)
Type | Temperature Range | Resolution | Accuracy | Excitation current |
Thermal resistance 100Ω | -200-850 depends on sensor | 0.001℃ | 0.016℃@-200℃ 0.030℃@-0℃ 0.060℃@300℃ | 1mA |
Thermistor 10KΩ | -40-150 depends on sensor | 0.001℃ | 0.007℃@-40℃ 0.003℃@-0℃ 0.026℃@100℃ | 10μA |
Thermocouple:
Type | Range | Resolution | Accuracy | Cold Junction Accuracy |
K | -270-1372℃ | 0.01℃ | 0.60℃@-200℃,0.50@1000℃ | 0.2℃ |
T | -270-400℃ | 0.01℃ | 0.60℃@-200℃,0.25@400℃ | 0.2℃ |
R | -50-1768℃ | 0.01℃ | 1.5℃@0℃,0.8@1600℃ | 0.2℃ |
S | -50-1768℃ | 0.01℃ | 1.60℃@-200℃,0.8@1600℃ | 0.2℃ |
J | -210-1200℃ | 0.01℃ | 0.45℃@-200℃,0.35@1000℃ | 0.2℃ |
N | -210-1300℃ | 0.01℃ | 0.80℃@-200℃,0.40@1000℃ | 0.2℃ |
E | -270-1000℃ | 0.01℃ | 0.40℃@-200℃,0.20@700℃ | 0.2℃ |
* Universal test channel: 24 channels. *Current measurement channels: 2 channels (optional 24V loop power supply). * Transmitter working power supply: 2 channels DC5V, 2 channels DC24V. *Scan rate: fast, medium and slow optional. * Storage: internal memory 4M data storage, external USB flash drive. * Communication interface: USB, Ethernet, RS485, Bluetooth. * Working power supply: DC12.6V adapter or lithium battery. * Lithium battery: DC12.6V/4500mAh, about 20h standby time. * Dimensions (length*width*height): 202mm*141mm*81mm. *Warranty period: 2 years.
Q: Are you a trading company or manufacture? A: We are a professional manufacture specialized in temperature humidity instrument and environment monitor system for 20 years.
Q: Who are we? A: We have a complete product line of precision temperature measurement and control such as temperature sensors, transmitters, temperature detection instruments and temperature calibration equipment.
Q: Is there any stock? A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Why to choose Hefei Zhice-elec products ? 1.Instruments has been exported to over 50 countries. 2.100% QC inspection Before Shipment. 3.ISO,CE,SGS standard and factory price. 4.Our instruments has been 100% recognized by Bureau of National Metrology. 5.Excellent product quality and strong technical support capability.
