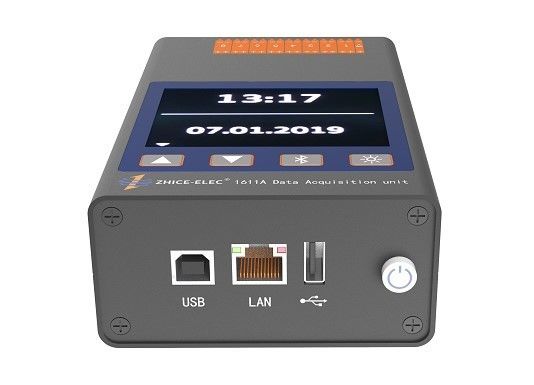

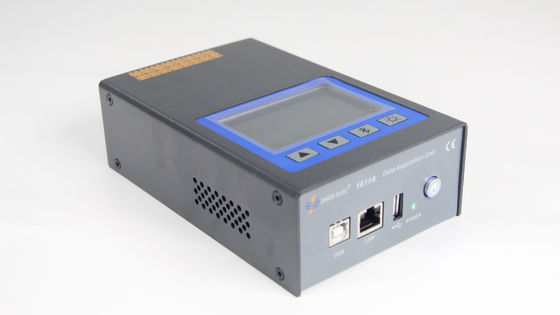

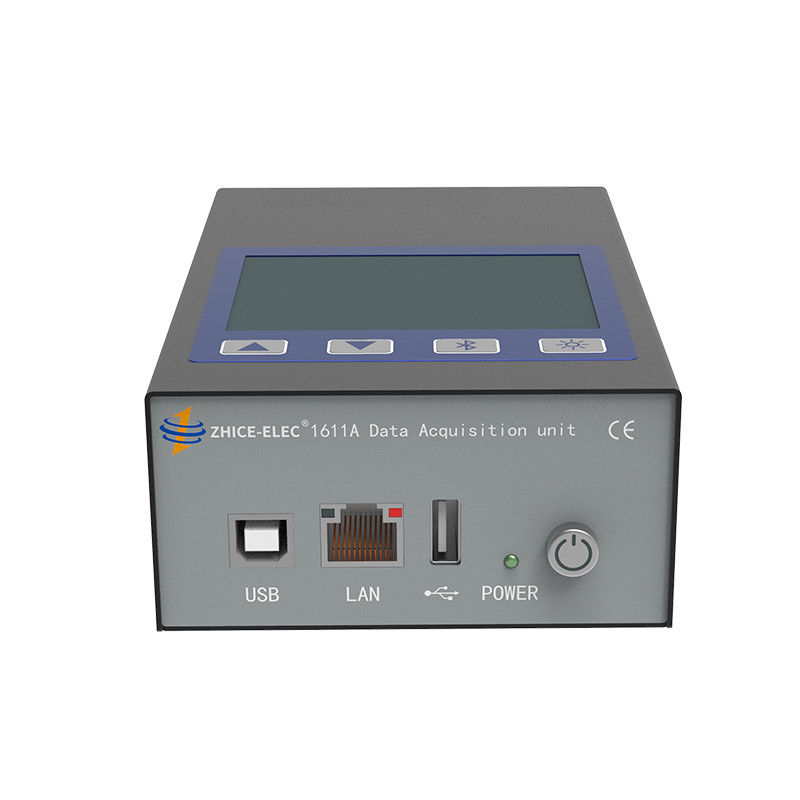

Handheld Portable 16 Channel Data Acquisition Unit for On-site Temperature Scanning
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | ZHICE-ELEC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $1,360.00/units 5-19 units |
| Packaging Details: | Bubble wrape & Carton Packing |
| Supply Ability: | 15 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 12 Months | Customized Support: | OEM |
|---|---|---|---|
| Product Name: | Multi Function Data Acquisition Unit | Model: | 1611A/RTD |
| Application: | Multi-channel Temperature Data Scanning Recording | Scanning Speed: | Can Set Slow, Medium And Fast |
| Channels: | 16 | Communication: | RS485/232, LAN, USB, Bluetooth |
| Storage: | Inner Storage 4M Can Connect With U Disk | Accuracy: | 0.04℃ |
| Power Supply: | DC8.4V Adapter Or Lithium Battery | Size: | 165*105*55mm |
Product Description

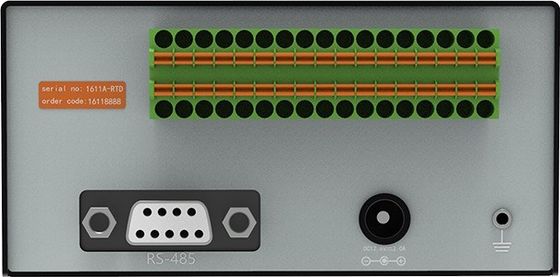

1611A multi-channel temperature measurement and acquisition unit is small, lightweight, can be handheld so it is easy to carry and suitable for on-site usage. All channels can achieve high-speed acquisition of 10ms. Differential input. At the same time, its flexible and versatile terminal blocks can accommodate various types of signal cables, making connection and removal quick and easy.
161XA DAQ data acquisition software, a Windows operating system-based application software, allows you to easily collect and analyze data on your PC. The software can realize set ups, data download, real-time data display, trend drawing, over-limit alarms etc. It can Further analyze the measured data and produce statistics such as maximum value, minimum value, average value and other data charts.
1611A multi-channel temperature measurement acquisition instrument is widely used in military scientific research, university laboratories, precision equipment, medical equipment, testing equipment, and other high-precision temperature measurement and control scenarios.
Model | 1611A/RTD |
Accuracy | 0.04℃ |
Resolution | 0.001℃ |
Range | 400Ω |
Scanning Speed | Slow, medium and fast |
Storage | Inner storage 4M, support external USB flash drive |
Communication | LAN, USB, RS485/RS232, Bluetooth |
Size | 165mm*105mm*55mm(L*W*H) |
Q: Are you a trading company or manufacture? A: We are a professional manufacture specialized in temperature humidity instrument and environment monitor system for 20 years.
Q: Who are we? A: We have a complete product line of precision temperature measurement and control such as temperature sensors, transmitters, temperature detection instruments and temperature calibration equipment.
Q: Is there any stock? A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Why to choose Hefei Zhice-elec products ? 1.Instruments has been exported to over 50 countries. 2.100% QC inspection Before Shipment. 3.ISO,CE,SGS standard and factory price. 4.Our instruments has been 100% recognized by Bureau of National Metrology. 5.Excellent product quality and strong technical support capability.
