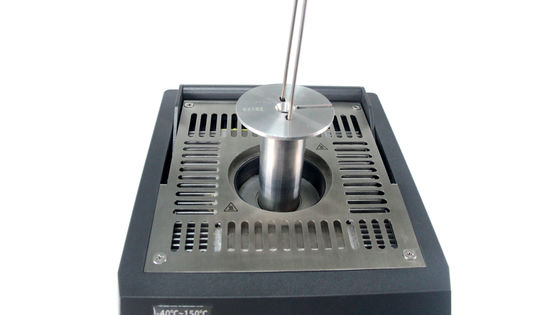

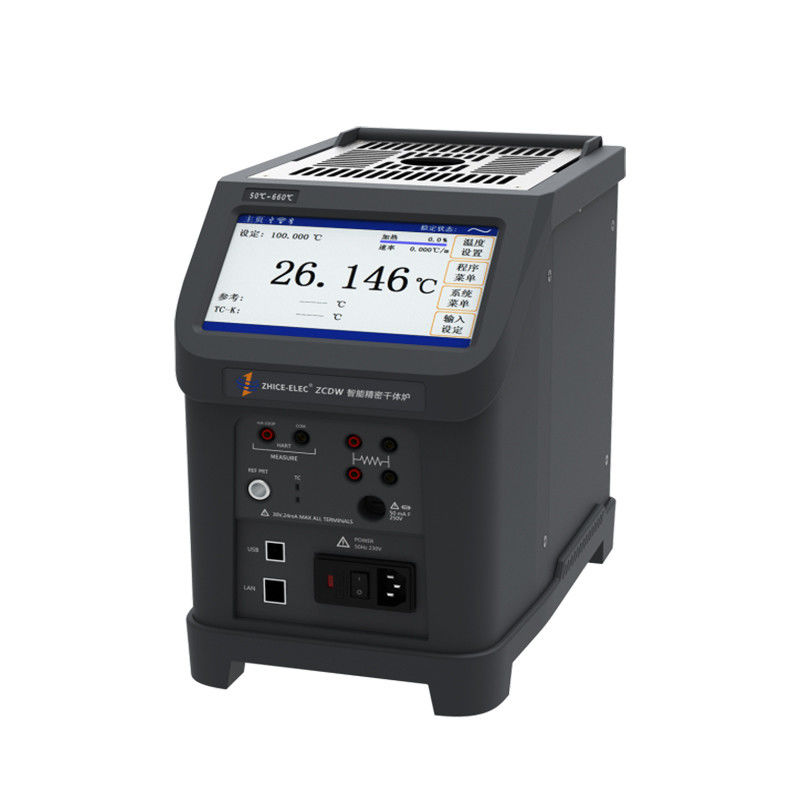

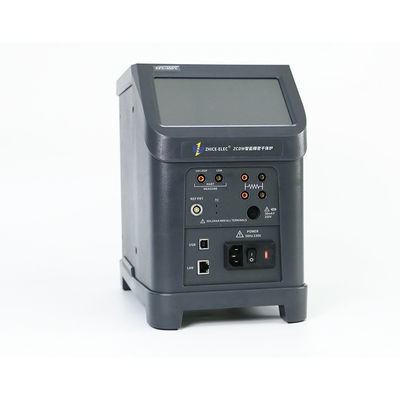

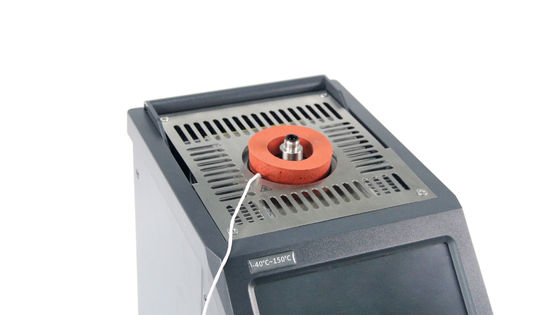

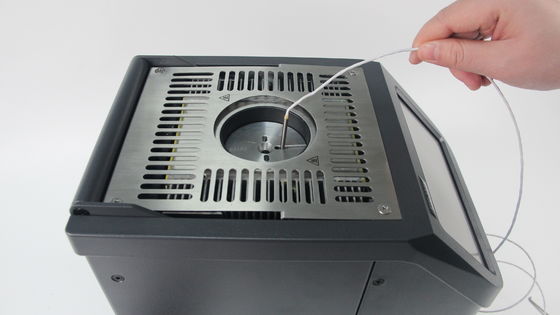

Accurate 33-350 C Multifunction Temperature Gauge Bath Calibration Dry Well Block Calibrator with Tripe Zone Control
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | ZHICE-ELEC |
| Model Number: | ZCDW-350H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $4,080.00/units 2-19 units |
|
Detail Information |
|||
| Warranty: | 1 Year | Classification: | Laboratory Thermostatic Devices |
|---|---|---|---|
| Customized Support: | OEM, ODM | Dimensions: | 311*200*310mm |
| Weight: | 10.5kg, 8.5kg | Voltage: | 220V |
| Temperature Range: | 33-350℃ | Application: | Provide Stable Temperature Field |
| Display Accuracy: | ±0.2℃ Full Range | Stability: | ±0.02℃ @ 200℃ |
| Immersion Depth: | 155mm | MOQ: | 1Set |
| Resolution: | 0.001℃ | Product Name: | Dry Well Calibrator/Dry Block Calibrator |
| Size: | 311*200*310mm | ||
Product Description
The ZCDW series intelligent dry block calibrator incorporates innovative technology to improve its the performance index, temperature control accuracy, and optimize the user experience. It features in fast heating and cooling, self-calibration, intelligent communication, and convenient application tool support.
The ZCDW series intelligent dry block can be used in electric power, petrochemical, metering, metallurgy, pharmaceutical, biotechnology, food, machinery, transportation, and other industries. It is suitable for laboratory, on-site calibration, testing and other application scenarios, which can greatly improve the testing efficiency of metrology staffs and test engineers.
The ZCDW series intelligent dry block can be used in electric power, petrochemical, metering, metallurgy, pharmaceutical, biotechnology, food, machinery, transportation, and other industries. It is suitable for laboratory, on-site calibration, testing and other application scenarios, which can greatly improve the testing efficiency of metrology staffs and test engineers.
Product Name | ZCDW IntelIigent Dry Block Calibrator | ||||
Model | ZCDW-40L | ZCDW-350H | ZCDW-660H | ||
Range(23℃) | ’-40℃-150℃ | 33℃-350℃ | 50℃-660℃ | ||
Display accuracy | ±0.2℃ full range | ±0.2℃ full range | ±0.35℃ @ 50℃ | ||
±0.05℃ @ 420℃ | |||||
±0.5℃ @ 660℃ | |||||
Stability | ±0.005℃ full range | ±0.02℃ @ 33℃ | ±0.03℃ @ 50℃ | ||
±0.02℃ @ 200℃ | ±0.05℃ @ 420℃ | ||||
±0.03℃ @ 350℃ | ±0.05℃ @ 660℃ | ||||
Axial uniformity within 40mm | ±0.05℃ full range | ±0.04℃ @ 33℃ | ±0.05℃ @ 50℃ | ||
±0.1℃ @ 200℃ | ±0.35℃ @ 420℃ | ||||
±0.2℃ @ 350℃ | ±0.5℃ @ 660℃ | ||||
Axial uniformity within 60mm | ±0.07℃ full range | ±0.04℃ @ 33℃ | ±0.1℃ @ 50℃ | ||
±0.2℃ @ 200℃ | ±0.5℃ @ 420℃ | ||||
±0.25℃ @ 350℃ | ±0.5℃ @ 660℃ | ||||
Radial Stability | ±0.01℃ full range | ±0.01℃ @ 33℃ | ±0.02℃ @ 50℃ | ||
±0.015℃ @ 200℃ | ±0.05℃ @ 420℃ | ||||
±0.02℃ @ 350℃ | ±0.1℃ @ 660℃ | ||||
Load impact (with a 6.35mm reference probe and three 6.35mm probes under test) | ±0.006℃ full range | ±0.015℃ full range | ±0.015℃ @ 50℃ | ||
±0.025℃ @ 420℃ | |||||
±0.035℃ @ 660℃ | |||||
Hysteresis | 0.025 | 0.03 | 0.03 | ||
Immersion depth | 160mm | 155mm | 155mm | ||
Well diameter | 31mm | 26mm | 26mm | ||
Resolution | 0.001℃ | ||||
Display | Touchscreen,℃ or ℉ | ||||
Size | L*W*H: 311mm*200mm*310mm | ||||
Weight | 10.5kg | 8.5kg | 10kg | ||
Power | 230V AC(±10%)5A | ||||
Heating time | 23℃ to 150℃: 32min | 33℃ to 350℃: 27min | 50℃ to 660℃: 46min | ||
40℃ to 150℃: 45min | |||||
Cooling time | 23℃ to 40℃: 40min | 350℃ to 33℃: 120min | |||
150℃ to 23℃: 19min | 350℃ to 100℃: 60min | ||||
Q: Are you a trading company or manufacture? A: We are a professional manufacture specialized in temperature humidity instrument and environment monitor system for 20 years.
Q: Who are we? A: We have a complete product line of precision temperature measurement and control such as temperature sensors, transmitters, temperature detection instruments and temperature calibration equipment.
Q: Is there any stock? A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Why to choose Hefei Zhice-elec products ? 1.Instruments has been exported to over 50 countries. 2.100% QC inspection Before Shipment. 3.ISO,CE,SGS standard and factory price. 4.Our instruments has been 100% recognized by Bureau of National Metrology. 5.Excellent product quality and strong technical support capability.
