Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Material: | / | Color: | /, Metal |
| Type: | /, PRT | Product Name: | Sanitary RTD Probe |
| Application: | Temperature Testing & Control | Temperature Range: | -200-650℃ |
| Calibration Certificate: | Can Provided | Casing Material: | 316L Stainless Steel |
| Name: | RTD Platinum Resistance Sensors | Accuracy: | 1/10B;±0.03℃,1/3B,±0.1℃,A:±0.15℃ |
| OEM: | Acceptable | ||
Product Description

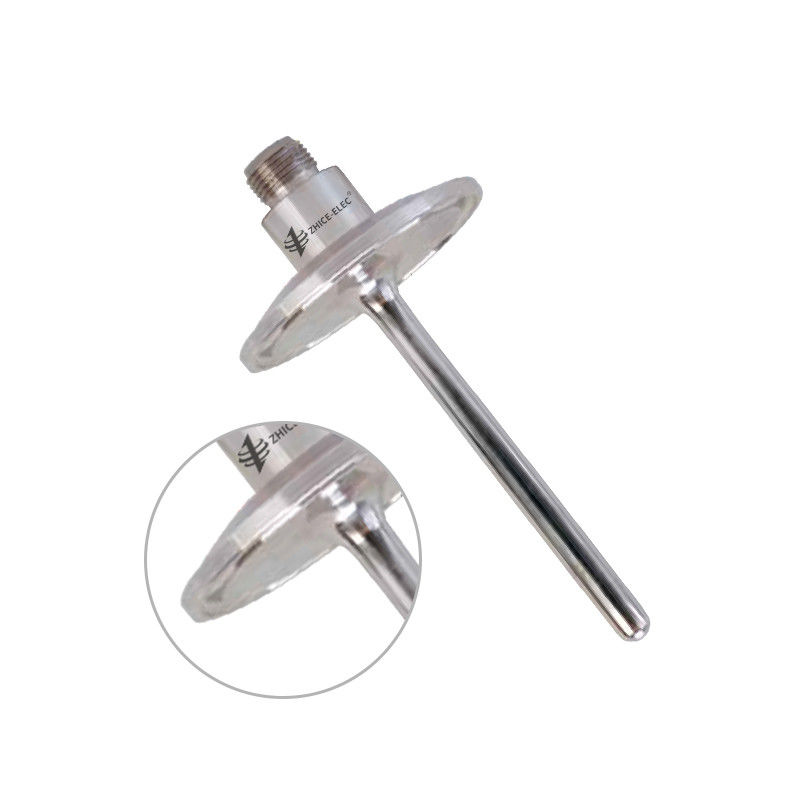

ARK22 Series High Precision PRT Probe with temperature range up to 650°C and excellent accuracy of ±0.1°C. ARK22 precision platinum resistance thermometer is shock and impact resistant, accurate and durable. ZHICE-ELEC is committed to the research and development and production of high-precision temperature measurement sensors, which are widely used in aerospace, petroleum and petrochemicals, universities, laboratories, metrology institutes, new energy, automobile manufacturing, biomedical, intelligent buildings and other industries. ZHICE have compelete production line from parts assembly to sensor calibration, and we aims to provide high precision, high durability temperature products.

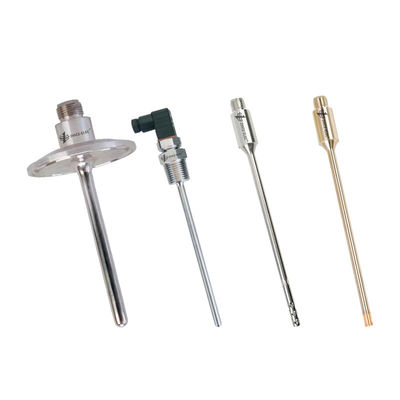

Model | ARK22 | PR1632 | ARK22 | AR22 | AR22 | ||||
Name | Sanitary temperature sensor | Bullet-wrappedtemperature sensor | With a miniature DlN connection interface temperature sensor | Air temperature sensor | Fast response copper tip temperature sensor | ||||
Platinum resistance count | Single, double | ||||||||
Cannula | Clamp type mounting sleeve | Bullet encapsulation | Miniature DlN pairing connector with screw terminal threaded mounting bushing(thread specified) | With vent probe tip.optional threaded mounting casing | Copper alloy tip,316L probe rod(Optional thread mounting) | ||||
Nominal resistance | PT100，PT1000..…… | ||||||||
Accuracy | 1/10B:士0.03°C，1/3B:士0.1°C，A:士0.15°C | ||||||||
Range | -200-650°C(optional) | ||||||||
Casing material | 316L Stainless steel | 316L stainless steel(tip copper alloy) | |||||||
Casing size | Diameter (3/3.2/4/5/6/6.4mm)*Length (specified)mm | The diameter is about 3.5mmLength (specified)mm | Diameter (3/4/5/6/6.4mm or as specified)*Length (specified)mm | diameter(6/6.4mm or specified)*Length(specified)mm | Diameter (5/6/6.4mm or as specified)* Length (specified)mm | ||||
Lead material | TFE, Stainless steel braid | ||||||||
Lead length | 0.5-1、2、3、5m,or designation | ||||||||
Lead wire | 2-wire,3-wire, 4-wire | ||||||||
Lead shield | Unshielded, with shielding | ||||||||
Lead terminal | Bare wire, spade, straight pin terminal, banana plug, navigation plug and other special terminals | ||||||||
Special Requirements | Customization Available | ||||||||
