Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM |
|---|---|---|---|
| Material: | / | Color: | /, Blue |
| Type: | / | Product Name: | Multifunction Loop Calibrator |
| Application: | Measure, Simulate, Output Process Signal | Function: | Voltage & MA |
| Feature: | Provide 24V Loop Power | Communication: | HART, 232 And Bluetooth |
| Name: | Loop Calibration | Size: | 170*75*45mm |
| Weight: | 510g | MOQ: | 1pc |
Product Description

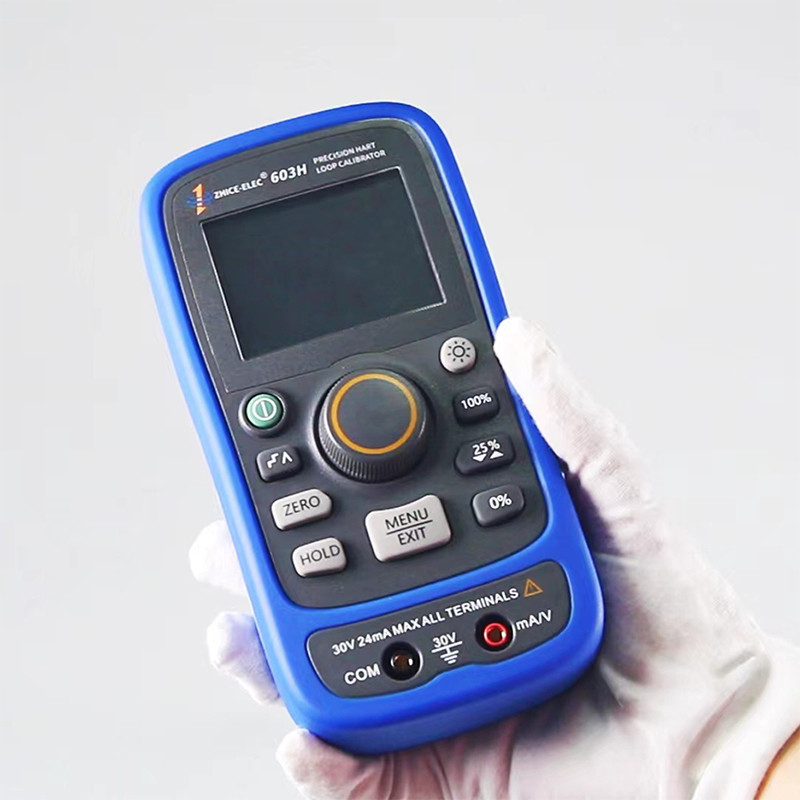

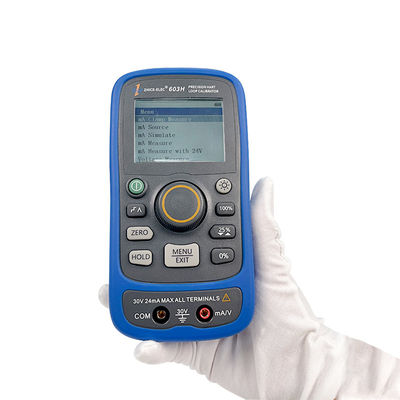

603H loop calibrator is a time-saving solution and generate high-quality results.

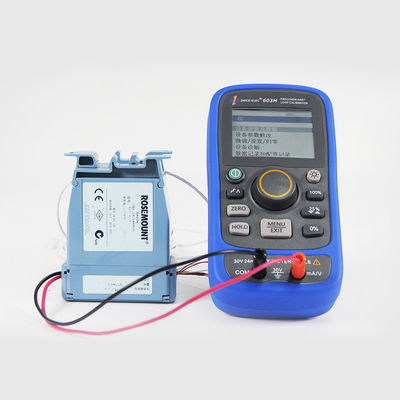

603H comes with HART communication function and supports one selected group of HART general instructions and general application instructions.
603H is a cost effective and compact loop calibrator; and a powerful HART communication tool.
603H has a built-in universal HART modem to execute the following commands:
read information; read tags, descriptors and calibration date; read sensor PV information; read PV output information;
read long tags; write PV range (upper and lower limit); write the main variable unit, short address and short label; enter/exit
the fixed current mode; adjust the zero point offset; fine-tune the DAC zero point (mA output: 4mA); fine-tune the DAC gain (mA output: 20mA)
read long tags; write PV range (upper and lower limit); write the main variable unit, short address and short label; enter/exit
the fixed current mode; adjust the zero point offset; fine-tune the DAC zero point (mA output: 4mA); fine-tune the DAC gain (mA output: 20mA)
Measure | Range | Measuring Range | Resolution | Accuracy | |||
Current measurement with mA clamp | 20.99mA | 0-20.99mA | 0.01mA | 0.2% + 5LSD | |||
100mA | 21-100mA | 0.1mA | 1% + 5LSD | ||||
Current measurement | 24mA | 0-24mA | 0.001mA | 0.01% + 2LSD (23℃ +5℃ full range) | |||
Current measurement with 24V voltage | 24mA | 0-24mA | 0.001mA | 0.01% + 2LSD (23°C+5°c full range) | |||
Voltage measurement | 30V | 0-30V | 0.001V | 0.01% + 2LSD (23°C+5°C full range) | |||
Source | Range | Measuring | Resolution | Accuracy | |||
Current sourcing | 24mA | 0-24mA | 0.001mA | 0.01% + 2LSD (23°C+5°C full range) | |||
Current simulating | 24mA | 0-24mA | 0.001mA | 0.01% + 2LSD (23°C+5°C full range) | |||
Voltage sourcing | 10V | 0-10V | 0.001V | ||||
HART communication | 603H comes with HART communication function | ||||||
HART resistor | 250Ω | ||||||
Loop power voltage | 24C DC@20mA | ||||||
Q: Are you a trading company or manufacture? A: We are a professional manufacture specialized in temperature humidity instrument and environment monitor system for 20 years.
Q: Who are we? A: We have a complete product line of precision temperature measurement and control such as temperature sensors, transmitters, temperature detection instruments and temperature calibration equipment.
Q: Is there any stock? A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Why to choose Hefei Zhice-elec products ? 1.Instruments has been exported to over 50 countries. 2.100% QC inspection Before Shipment. 3.ISO,CE,SGS standard and factory price. 4.Our instruments has been 100% recognized by Bureau of National Metrology. 5.Excellent product quality and strong technical support capability.
