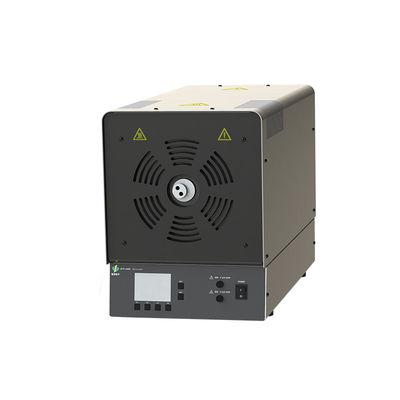

30kg High Temperature Calibrator for Laboratory Test Thermocouple Calibration Furnace
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | ZHICE-ELEC |
| Model Number: | ZCTF-1200L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $6,395.00/units 5-9 units |
|
Detail Information |
|||
| Warranty: | 1 Year | Classification: | Laboratory Thermostatic Devices |
|---|---|---|---|
| Customized Support: | OEM | Dimensions: | 455*342*700mm |
| Weight: | 30kg | Voltage: | 230V,50/60Hz,20A |
| Material: | / | Product Name: | Thermocouple Calibration Furnace |
| Model: | ZCTF-1200L | Working Environment: | 5-40℃ |
| Storage Temperature: | -20-70℃ | Stability: | ±0.2℃(30') |
| Stabilization Time: | 2H | Display: | LCD |
| Connect: | RS-232 And USB | Display Resolution: | 0.1℃ |
| Function: | Steady Temperature | ||
Product Description
ZCTF-1200L thermocouple calibration furnace has independent temperature control system. The temperature setting, heating, stabilization, etc. can be completed through simple menu operations. It is widely used in testing and laboratory calibration of base-metal thermocouples and noble-metal thermoelements.
ZCTF-1200L adopts dual-zone heating design. The heater is embedded in a refractory ceramic fiber material to form a set of two-piece heating components. The use of dual-zone temperature control technology achieves excellent stability and improves the heating efficiency. At the same time, high-performance Type-S thermocouple is used for control to keep the stability and accuracy of long-term high temperatures operations. ZCTF-1200L uses excellent insulation technology to avoid potential safety problems caused by the leakage when operating at high temperature. The calibration furnace also uses high-performance thermal insulation materials to ensure the safety of the temperature of the thermocouple furnace shell, especially for long-term use.
ZCTF-1200L adopts dual-zone heating design. The heater is embedded in a refractory ceramic fiber material to form a set of two-piece heating components. The use of dual-zone temperature control technology achieves excellent stability and improves the heating efficiency. At the same time, high-performance Type-S thermocouple is used for control to keep the stability and accuracy of long-term high temperatures operations. ZCTF-1200L uses excellent insulation technology to avoid potential safety problems caused by the leakage when operating at high temperature. The calibration furnace also uses high-performance thermal insulation materials to ensure the safety of the temperature of the thermocouple furnace shell, especially for long-term use.
Kay Features
* Built-in temperature control, independent operation, easy to use
* Dual zone temperature control, more accurate, more stable, and faster
* Eight pre-set temperature calibration points, more convenient to use
* Adjustable temperature scan rate
Product Name | ZCTF-1200L Thermocouple Calibration Furnace |
Operating Temperature | 5°C - 40°C |
Storage Temperature | -20℃ - 70℃ |
Humidity | 80% maximum humidity for temperature under 31°C, decreasing linearity to 50% at 40℃ |
Altitude | Less than 2000 meters |
Furnace Temperature Range | 300°C - 1200℃ |
Radial Uniformity | Within 14mm from geometry central point: temperature difference≤0.25℃ |
Axial Uniformity | Within 30mm axial length from geometry central point: temperature difference≤0.4℃ |
Stability | ±0.2℃ (within 30mins) |
Measuring Point Accuracy | ±5℃ |
Stability Time | 2 hours (from ambient temperature to 1200℃ |
Heater Power | 4KW |
Power Requirement | AC230V(±10%),50/60HZ, 20A |
Display | LCD, black and white |
Resolution | 0.1℃ |
Interface | RS-232 and USB |
Fuse | Main heater F12A, 250V |
Area heater: F12A, 250V | |
Isothermal Block | Outer diameter 37mm, length 380mm |
Well diameter 8.5mm, depth 371mm | |
Size(H/W/L) | 455mm*342mm*700 |
Weight | 30KG |
