Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | ZHICE-ELEC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $423.00/units 5-14 units |
|
Detail Information |
|||
| Warranty: | 3 Years | Customized Support: | OEM |
|---|---|---|---|
| Material: | / | Color: | / |
| Power: | / | Product Name: | Multifunction Loop Calibrator |
| Application: | Measure, Simulate, Output Process Signal | Function: | Voltage/mA/RTD/thermocouple/frequency/pulse And Resistance |
| Feature: | Provide 24V Loop Power | Communication: | HART, 232 And Bluetooth |
| Frequency: | 1 Hz~1000MHz | Size: | 208*95*45mm |
| Weight: | 610g | Name: | Process Calibration |
| Display: | LCD | ||
Product Description

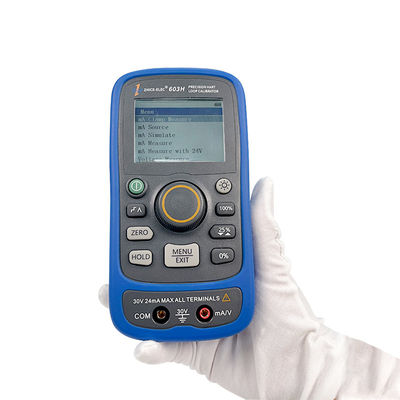

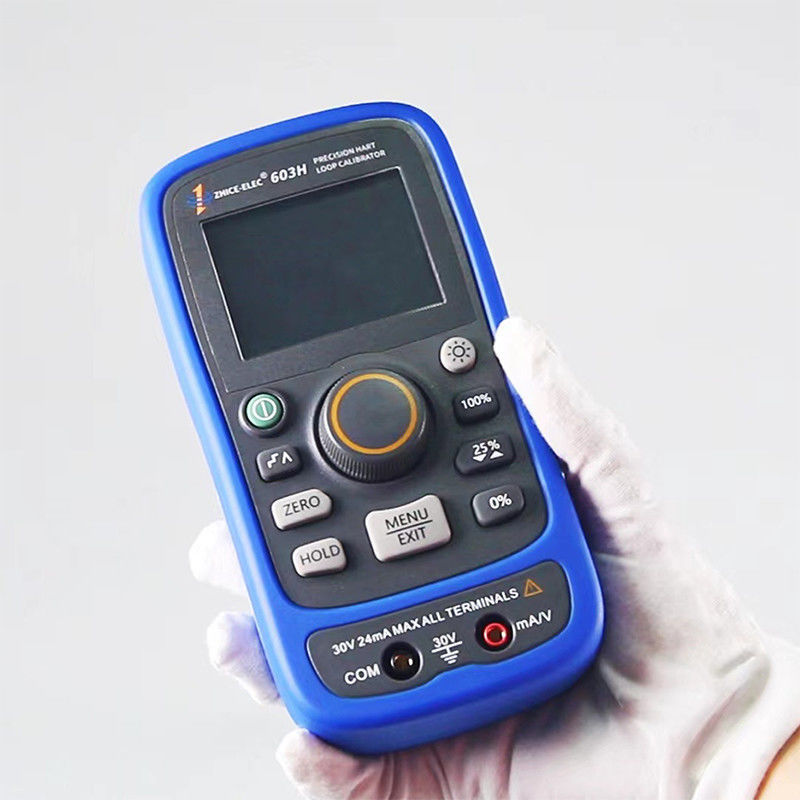

603H loop calibrator is a time-saving solution and generate high-quality results.
603H comes with HART communication function and supports one selected group of HART general instructions and general application instructions.
603H is a cost effective and compact loop calibrator; and a powerful HART communication tool.

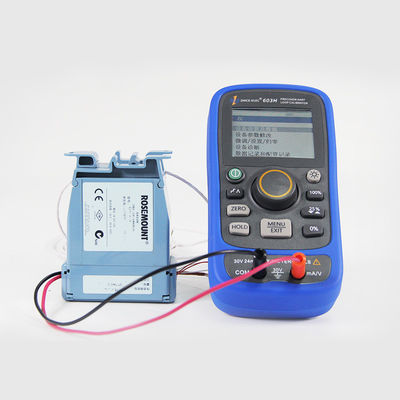

603H has a built-in universal HART modem to execute the following commands:
read information; read tags, descriptors and calibration date; read sensor PV information; read PV output information;
read long tags; write PV range (upper and lower limit); write the main variable unit, short address and short label; enter/exit
the fixed current mode; adjust the zero point offset; fine-tune the DAC zero point (mA output: 4mA); fine-tune the DAC gain (mA output: 20mA)
read long tags; write PV range (upper and lower limit); write the main variable unit, short address and short label; enter/exit
the fixed current mode; adjust the zero point offset; fine-tune the DAC zero point (mA output: 4mA); fine-tune the DAC gain (mA output: 20mA)
Measure | Range | Measuring Range | Resolution | Accuracy | |||
Current measurement with mA clamp | 20.99mA | 0-20.99mA | 0.01mA | 0.2% + 5LSD | |||
100mA | 21-100mA | 0.1mA | 1% + 5LSD | ||||
Current measurement | 24mA | 0-24mA | 0.001mA | 0.01% + 2LSD (23℃ +5℃ full range) | |||
Current measurement with 24V voltage | 24mA | 0-24mA | 0.001mA | 0.01% + 2LSD (23°C+5°c full range) | |||
Voltage measurement | 30V | 0-30V | 0.001V | 0.01% + 2LSD (23°C+5°C full range) | |||
Source | Range | Measuring | Resolution | Accuracy | |||
Current sourcing | 24mA | 0-24mA | 0.001mA | 0.01% + 2LSD (23°C+5°C full range) | |||
Current simulating | 24mA | 0-24mA | 0.001mA | 0.01% + 2LSD (23°C+5°C full range) | |||
Voltage sourcing | 10V | 0-10V | 0.001V | ||||
HART communication | 603H comes with HART communication function | ||||||
HART resistor | 250Ω | ||||||
Loop power voltage | 24C DC@20mA | ||||||
Q: Are you a trading company or manufacture? A: We are a professional manufacture specialized in temperature humidity instrument and environment monitor system for 20 years.
Q: Who are we? A: We have a complete product line of precision temperature measurement and control such as temperature sensors, transmitters, temperature detection instruments and temperature calibration equipment.
Q: Is there any stock? A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Why to choose Hefei Zhice-elec products ? 1.Instruments has been exported to over 50 countries. 2.100% QC inspection Before Shipment. 3.ISO,CE,SGS standard and factory price. 4.Our instruments has been 100% recognized by Bureau of National Metrology. 5.Excellent product quality and strong technical support capability.
