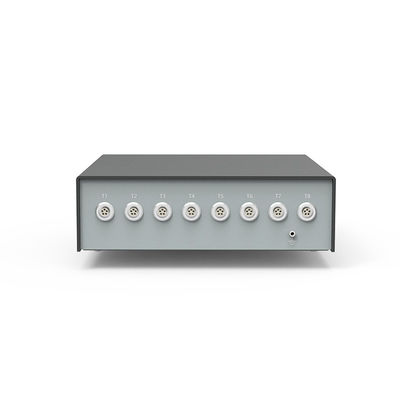

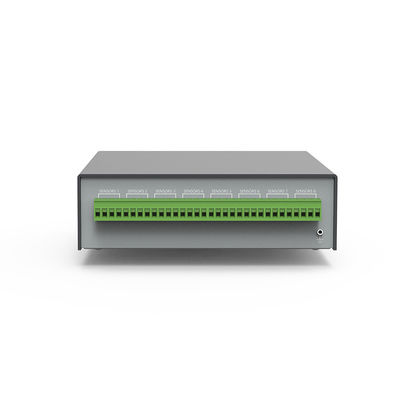

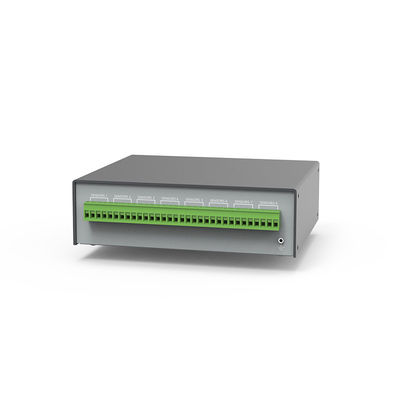

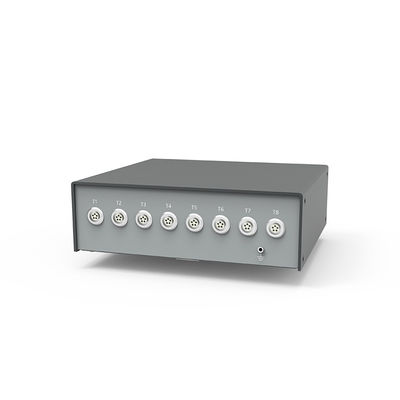

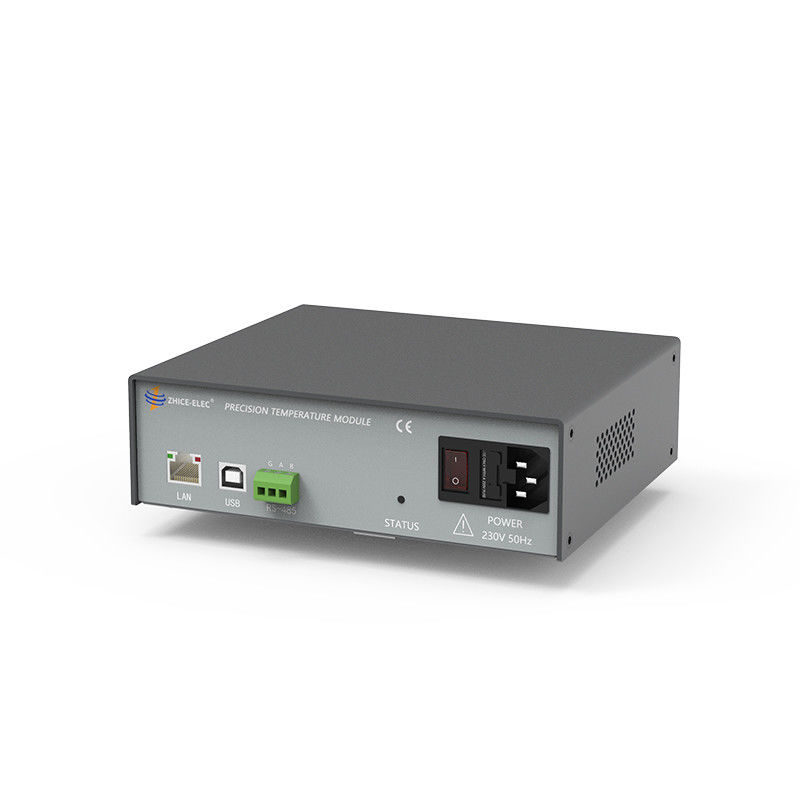

Modbus Multi Channel NTC Thermistor Temperature Acquisition Module with High Accuracy
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | ZHICE-ELEC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $716.00/units 5-19 units |
| Packaging Details: | Bubble wrape & Carton Packing |
| Supply Ability: | 10 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 12 Months | Customized Support: | OEM |
|---|---|---|---|
| Product Name: | Precision Temperature Module/NTC | Application: | Multi-channel Temperature Data Scanning Recording |
| Scanning Speed: | ≥1Hz/channel | Channels: | 8/16/32 |
| Communication: | RS485/232, LAN, USB, Bluetooth | Input Wire: | 2-wire, 4-wire |
| Measurement Range: | 0-100℃ | Measurement Hardware Resolution: | ≤0.01℃ |
| Accuracy: | ±0.05℃ | Size: | 160*188*56mm |
Product Description
Precision multi-channel resistance temperature measurement module, multi-channel isolated temperature signal measurement, supports independent switch control, and the measurement accuracy is better than 0.1℃, provides a variety of communication interfaces, supports MODBUS communication protocol, is flexible to use, and can be widely used in industrial automation and control, high-precision temperature measurement and control in scientific research laboratories, high-end manufacturing and other scenarios.
Name | Precision temperature module/NTC |
Range | 0~100°C |
Measure hardware resolution | ≤0.01°C |
Accuracy | ±0.05°C |
Sampling speed | ≥1Hz/channel |
Temperature probe interface | Terminal block or aviation plug |
Wiring | 2-wire, 4-wire |
Channel | 8/16/32 |
Communication port | LAN/RS485/USB/RS232 |
Protocol | Modbus |
Sensor type | PT100/PT1000 |
Power | ≤3W |
Power supply | AC220V/DC24V |
Power switch | yes |
Power interface | AC power outlet/DC terminal block |
Size(mm) | 160*188*56(L*W*H) |
Q: Are you a trading company or manufacture? A: We are a professional manufacture specialized in temperature humidity instrument and environment monitor system for 20 years.
Q: Who are we? A: We have a complete product line of precision temperature measurement and control such as temperature sensors, transmitters, temperature detection instruments and temperature calibration equipment.
Q: Is there any stock? A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Why to choose Hefei Zhice-elec products ? 1.Instruments has been exported to over 50 countries. 2.100% QC inspection Before Shipment. 3.ISO,CE,SGS standard and factory price. 4.Our instruments has been 100% recognized by Bureau of National Metrology. 5.Excellent product quality and strong technical support capability.
